基础知识

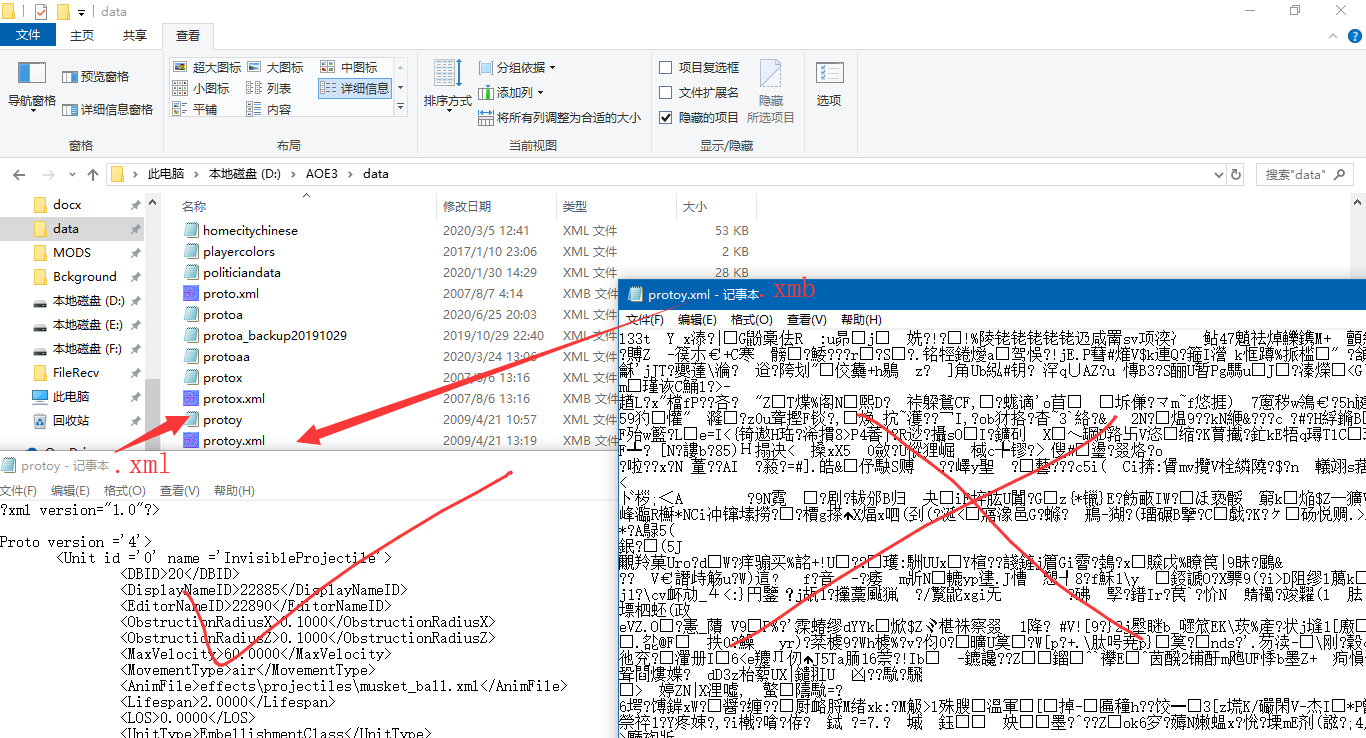

主要学习修改三个文件，分别是data文件夹里面的protoy.xml、techtreey.xml与stringtabley.xml。

protoy可以修改单位各种属性与建造按钮，例如生命值、速度、视野、图标、建造单位按钮等。

techtreey可以修改科技、卡片的效果，例如增加可训练单位、增加或减少生命值、运送单位等。

stringtabley是语言文件，作用是其他文件的5个数字会转变成这个文件与那5个数字相对应的文字。

刚入门的萌新请务必看完本页面，谢谢。



如果你还没下载单位手册，请点击此处下载帝国时代3亚洲王朝1.03版单位手册终极版.exe。



注意：在本教程中中间的X是数值或路径，后面或下一行的文字是对整行效果的解释。如果你问我X是什么，我保证我不会打死你的。

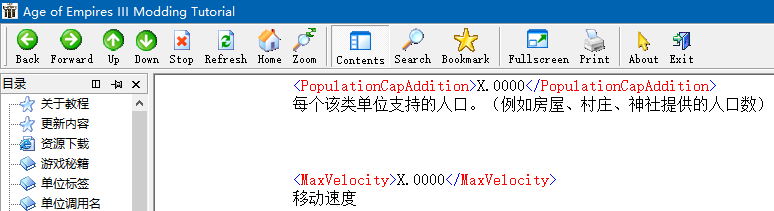

图片的<PopulationCapAddition>X</PopulationCapAddition>为可容纳人口数，把X改成100，那么该单位/建筑就能容纳100人口。
把<MaxVelocity>X</MaxVelocity>中间的X改成10，那么该单位移动速度变成10

像军营那种单位没有可容纳人口数量的语句怎么办？
鉴于你是刚入门，我不欺负你：没有就自己将语句添加进军营就可以了。

PS：随意伸手会受到惩罚，甚至是受到-2147483647点暴击伤害。



萌新（LV1）：！@#￥%……&怎样修改？
萌新（LV2）：^&*(!@#$)_*&怎样修改？
萌新（LV3）：/*-+23456^%
萌新（LV4）：~!@#$%~``#%;怎样修改？

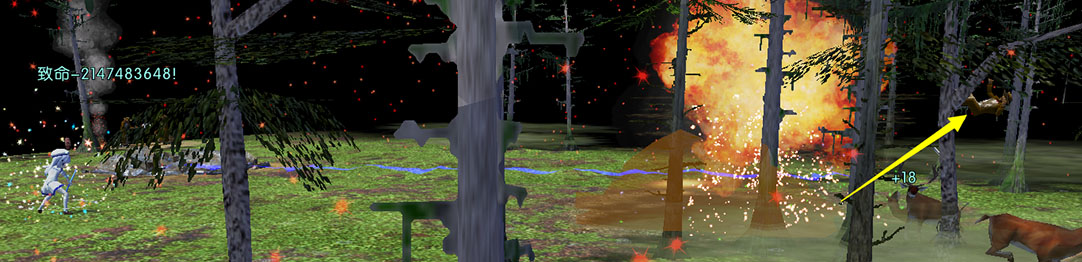

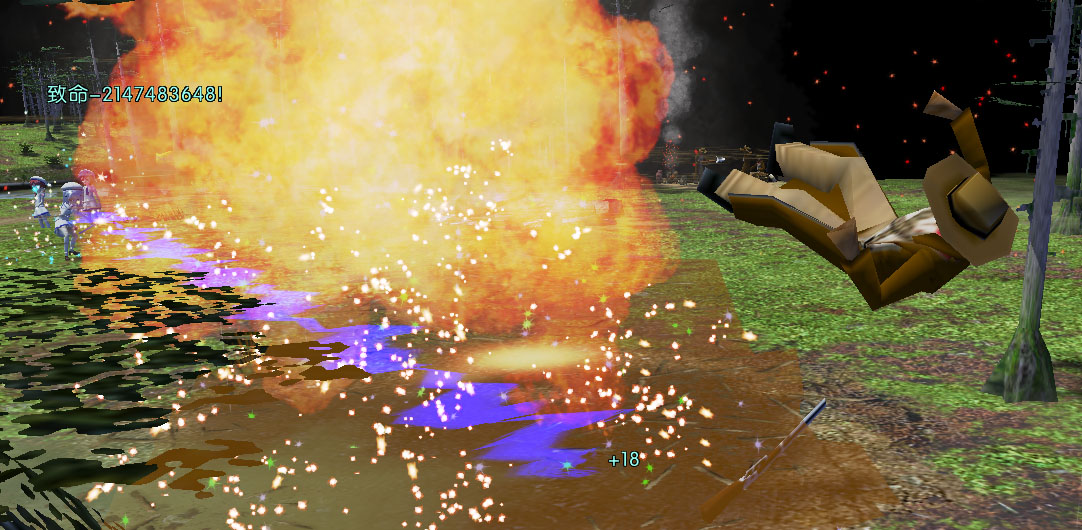

小羽（LV??）向萌新（LV4）发动攻击，造成了-2147483648点致命伤害。


小羽（LV??）：最不喜欢那些自己不思考却又总是伸手的人了。不把你直接炸成灰已经算是对你手下留情了。
另一个萌新（LV1）看见此状况在瑟瑟发抖。



本教程一些术语:

protoname为Protoy.xml的单位调用名
techname为Techtreey.xml的科技调用名
protoPowerName为Protounitcommands.xml的调用名



什么是单位调用名？


什么是调用名？
凡是name = 'XXXX'都是调用名。
  protoy.xml - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)
	<Unit id ='909' name ='ypChuKoNu'>
		<DBID>1333</DBID>
		<DisplayNameID>60152</DisplayNameID>
		<EditorNameID>60153</EditorNameID>
		<PopulationCount>1</PopulationCount>
		<ObstructionRadiusX>0.4900</ObstructionRadiusX>
		<ObstructionRadiusZ>0.4900</ObstructionRadiusZ>

上图中的单位调用名为ypChuKoNu，然后在Stringtabley.xml搜索60152，查到该单位为诸葛弩。你可能看见了一张假截图


  techtreey.xml - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	<Tech name ='HCShipCrossbowmen3German' type ='Normal'>
		<DBID>2474</DBID>
		<DisplayNameID>36423</DisplayNameID>
		<Cost resourcetype ='Ships'>1.0000</Cost>
		<ResearchPoints>40.0000</ResearchPoints>
		<Status>UNOBTAINABLE</Status>
		<Icon>units\infantry_ranged\crossbow\crossbow_icon_64x64</Icon>

上图中的科技调用名为HCShipCrossbowmen3，在Stringtabley搜索42201，查到该科技为运送21个弩手的卡片。








此处非常重要



怎样修改单位人口啊？

.看圣典

怎样让村民建造工厂啊？

..看圣典

怎样让中国训练火枪手啊？

...看圣典

怎样建造剧情里面的英雄啊？

....

圣典我看了，就是不会。

.....

你就教教我呗

......我还能说些什么？不是你不会，而是你想不劳而获。要么你就是猪。







请记住以下语句：

  techtreey.xml - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)
		启用科技

			<Effect type ='TechStatus' status ='obtainable'>Techname</Effect>



		禁用科技

			<Effect type ='TechStatus' status ='unobtainable'>Techname</Effect>



		直接改良科技

			<Effect type ='TechStatus' status ='active'>Techname</Effect>



		停用单位（0是停用，1是启用，-1是停用。）

			<Effect type ='Data' amount ='0' subtype ='Enable' relativity ='Absolute'>
				<Target type ='ProtoUnit'>Protoname</Target></Effect>





		启用单位（0是停用，1是启用，-1是停用。）

			<Effect type ='Data' amount ='1' subtype ='Enable' relativity ='Absolute'>
				<Target type ='ProtoUnit'>Protoname</Target></Effect>





protoy.xml - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

		<PopulationCount>X.0000</PopulationCount>
		每个该类单位所占人口。
		注意：俄国军队不能改为0，否则俄国不能出兵的。（如果要改为0需要在civs.xml删除沙俄的捆绑出兵方式的语句,具体请点击这里）




		<Train row ='0' page ='X' column ='Y'>A</Train>
		此单位/建筑可以生产的单位。

		<Tech row ='0' page ='X' column ='Y'>A</Tech>
		此单位/建筑可以研究的科技。

		Y是X行的第几个，protoname是单位调用名，techname是科技调用名
		X的显示值看下表





  ='0'
  训练
  ='12'
  英国人




  ='1'
  改良
  ='13'
  法国人




  ='2'
  步兵
  ='14'
  俄罗斯人




  ='3'
  奇观
  ='15'
  荷兰人




  ='4'
  骑兵
  ='16'
  西班牙领事馆




  ='5'
  炮兵
  ='17'
  葡萄牙人




  ='6'
  建造
  ='18'
  选择盟友




  ='7'
  购买
  ='19'
  军队




  ='8'
  出售
  ='20'
  （领事馆的解约科技大按钮）




  ='9'
  战术
  ='21'
  购买




  ='10'
  命令
  ='22'
  （空白）




  ='11'
  能力(Abilities)











怎样修改单位人口？
很简单的，例如修改诸葛弩：
打开protoy.xml，搜索ypchukonu（ypchukonu是诸葛弩的单位调用名，自己看单位手册或者圣典的单位调用名，自己在stringtabley.xml寻找也行）
然后会看到<Unit id ='909' name ='ypChuKoNu'>

接下来把 <PopulationCount>1</PopulationCount>中间的1修改成0，那么诸葛弩占用人口就变成0了，修改成100，占用人口就变成100。
  protoy.xml - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	<Unit id ='909' name ='ypChuKoNu'>
		<DBID>1333</DBID>
		<DisplayNameID>60152</DisplayNameID>
		<EditorNameID>60153</EditorNameID>
		<PopulationCount>1</PopulationCount>
		<ObstructionRadiusX>0.4900</ObstructionRadiusX>
		<ObstructionRadiusZ>0.4900</ObstructionRadiusZ>
		<FormationCategory>Ranged</FormationCategory>
		<MaxVelocity>4.5000</MaxVelocity>
		<MaxRunVelocity>6.0000</MaxRunVelocity>
		<MovementType>land</MovementType>
		<TurnRate>18.0000</TurnRate>
		<AnimFile>units\Mods\ming\crossbow\crossbow.xml</AnimFile>
		<ImpactType>Flesh</ImpactType>
		<PhysicsInfo>dude</PhysicsInfo>
		<Icon>icon\mingcrossbow_icon_64</Icon>
		<PortraitIcon>icon\mingcrossbow_icon_portrait</PortraitIcon>
		<RolloverTextID>60151</RolloverTextID>
		<ShortRolloverTextID>60150</ShortRolloverTextID>
		<InitialHitpoints>90.0000</InitialHitpoints>
		<MaxHitpoints>90.0000</MaxHitpoints>
		<LOS>20.0000</LOS>
		<ProjectileProtoUnit>Arrow</ProjectileProtoUnit>
		<AutoAttackRange>16.0000</AutoAttackRange>
		<UnitAIType>RangedCombative</UnitAIType>
		<TrainPoints>24.0000</TrainPoints>
		<Bounty>9.0000</Bounty>
		<BuildBounty>9.0000</BuildBounty>
		<Cost resourcetype ='Food'>85.0000</Cost>
		<AllowedAge>1</AllowedAge>
		<Armor type ='Ranged' value ='0.2000'></Armor>
		<UnitType>LogicalTypeHealed</UnitType>
		<UnitType>LogicalTypeValidSharpshoot</UnitType>



自己来试一遍，点击下面的(假)记事本文本框，然后按ctrl+F搜索ypchukonu


把PopulationCount的1改成0,或100，按保存。。。这个记事本是假的，不能保存，自己到外面去打开protoy.xml修改后再保存。
  protoy.xml - 记事本 ____ □ X
文件(F)  编辑(E)  格式(O)  查看(V)  帮助(H)

	<Unit id ='908' name ='ypMonkIndian'>
		<DBID>1332</DBID>
		<DisplayNameID>60148</DisplayNameID>
		<EditorNameID>60149</EditorNameID>
		<ObstructionRadiusX>0.7900</ObstructionRadiusX>
		<ObstructionRadiusZ>0.7900</ObstructionRadiusZ>
		<FormationCategory>Mobile</FormationCategory>
		<MaxVelocity>5.0000</MaxVelocity>
		<MaxRunVelocity>7.0000</MaxRunVelocity>
		<MovementType>land</MovementType>
		<TurnRate>18.0000</TurnRate>
		<AnimFile>units\asians\indians\monk\monk_elephant.xml</AnimFile>
		<ImpactType>Flesh</ImpactType>
		<Icon>units\asians\indians\monk\indian_monk_icon_64</Icon>
		<MinimapIcon>ui\minimap\hero</MinimapIcon>
		<PortraitIcon>units\asians\indians\monk\indian_monk_icon_portrait</PortraitIcon>
		<SelectionPriority>5</SelectionPriority>
		<RolloverTextID>60147</RolloverTextID>
		<ShortRolloverTextID>60146</ShortRolloverTextID>
		<InitialHitpoints>250.0000</InitialHitpoints>
		<MaxHitpoints>250.0000</MaxHitpoints>
		<LOS>18.0000</LOS>
		<ProjectileProtoUnit>InvisibleProjectile</ProjectileProtoUnit>
		<AutoAttackRange>16.0000</AutoAttackRange>
		<UnitAIType>RangedCombative</UnitAIType>
		<TrainPoints>20.0000</TrainPoints>
		<BuildLimit>1</BuildLimit>
		<Bounty>45.0000</Bounty>
		<Cost resourcetype ='Gold'>175.0000</Cost>
		<RechargeTime>10.0000</RechargeTime>
		<AllowedAge>0</AllowedAge>
		<Armor type ='Ranged' value ='0.2000'></Armor>
		<UnitType>LogicalTypeHealed</UnitType>
		<UnitType>LogicalTypeNeededForVictory</UnitType>
		<UnitType>LogicalTypeHandUnitsAutoAttack</UnitType>
		<UnitType>LogicalTypeLandMilitary</UnitType>
		<UnitType>LogicalTypeScout</UnitType>
		<UnitType>LogicalTypeValidSPCUnitsDeadCondition</UnitType>
		<UnitType>LogicalTypeGarrisonInShips</UnitType>
		<UnitType>LogicalTypeRangedUnitsAutoAttack</UnitType>
		<UnitType>LogicalTypeVillagersAttack</UnitType>
		<UnitType>LogicalTypeHandUnitsAttack</UnitType>
		<UnitType>LogicalTypeRangedUnitsAttack</UnitType>
		<UnitType>LogicalTypeMinimapFilterMilitary</UnitType>
		<UnitType>Hero</UnitType>
		<UnitType>AbstractCavalry</UnitType>
		<UnitType>AbstractElephant</UnitType>
		<UnitType>Unit</UnitType>
		<UnitType>Military</UnitType>
		<UnitType>UnitClass</UnitType>
		<UnitType>AbstractCavalryInfantry</UnitType>
		<UnitType>HasBountyValue</UnitType>
		<UnitType>Ranged</UnitType>
		<UnitType>AbstractCanSeeStealth</UnitType>
		<UnitType>AbstractHandCavalry</UnitType>
		<UnitType>ConvertsHerds</UnitType>
		<UnitType>AbstractMonk</UnitType>
		<UnitType>AbstractIndianMonk</UnitType>
		<Train row ='0' page ='6' column ='1'>TradingPost</Train>
		<Train row ='0' page ='6' column ='0'>TownCenter</Train>
		<Train row ='0' page ='6' column ='3'>NatBlowgunAmbusher</Train>
		<Train row ='0' page ='6' column ='2'>WarDog</Train>
		<Train row ='0' page ='6' column ='4'>NatClubmanLoyal</Train>
		<Train row ='0' page ='6' column ='2'>PetCoyote</Train>
		<Train row ='0' page ='6' column ='2'>YPPetTiger</Train>
		<Train row ='0' page ='6' column ='5'>YPPetRhino</Train>
		<Train row ='0' page ='6' column ='4'>YPPetWhiteTiger</Train>
		<Train row ='0' page ='6' column ='3'>ypPetLion</Train>
		<Flag>CollidesWithProjectiles</Flag>
		<Flag>ApplyHandicapTraining</Flag>
		<Flag>CorpseDecays</Flag>
		<Flag>ShowGarrisonButton</Flag>
		<Flag>DontRotateObstruction</Flag>
		<Flag>ObscuredByUnits</Flag>
		<Flag>HeroName2</Flag>
		<Flag>RotateInPlace</Flag>
		<Flag>ForceBuildingData</Flag>
		<Flag>NotDeleteable</Flag>
		<Flag>KnockoutDeath</Flag>
		<Flag>CanAutoHeal</Flag>
		<Flag>Tracked</Flag>
		<Command page ='10' column ='0'>Garrison</Command>
		<Command page ='10' column ='2'>Stop</Command>
		<Command page ='11' column ='0'>Abilities</Command>
		<Command page ='9' column ='0'>ToggleStealth</Command>
		<Tactics>ypindianmonk.tactics</Tactics>
		<ProtoAction>
			<Name>AutoGatherWood</Name>
			<Type>AutoGather</Type>
			<Rate type ='Wood'>0.100000</Rate>
		</ProtoAction>
		<ProtoAction>
			<Name>Build</Name>
			<Rate type ='TradingPost'>3.000000</Rate>
			<Rate type ='TownCenter'>1.000000</Rate>
			<Rate type ='WarHut'>1.000000</Rate>
			<Rate type ='ArtilleryDepot'>1.000000</Rate>
			<Rate type ='Corral'>1.000000</Rate>
		</ProtoAction>
		<ProtoAction>
			<Name>BuildingAttack</Name>
			<Damage>10.000000</Damage>
			<DamageType>Siege</DamageType>
			<ROF>3.000000</ROF>
			<DamageBonus type ='Building'>1.000000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>GuardianAttack</Name>
			<Damage>4.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageCap>40.000000</DamageCap>
			<DamageBonus type ='Guardian'>3.000000</DamageBonus>
			<DamageArea>2.000000</DamageArea>
			<DamageFlags>GAIAEnemy</DamageFlags>
			<HitPercent>10.000000</HitPercent>
			<HitPercentType>Sweep</HitPercentType>
		</ProtoAction>
		<ProtoAction>
			<Name>HandAttack</Name>
			<Damage>4.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageCap>40.000000</DamageCap>
			<DamageBonus type ='Guardian'>3.000000</DamageBonus>
			<DamageArea>2.000000</DamageArea>
			<DamageFlags>Enemy</DamageFlags>
			<HitPercent>10.000000</HitPercent>
			<HitPercentType>Sweep</HitPercentType>
			<DamageBonus type ='AbstractVillager'>0.250000</DamageBonus>
			<DamageBonus type ='Hero'>0.500000</DamageBonus>
			<DamageBonus type ='AbstractArtillery'>1.000000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>Heal</Name>
			<Type>Heal</Type>
			<Rate type ='LogicalTypeHealed'>4.000000</Rate>
		</ProtoAction>
		<ProtoAction>
			<Name>Stun</Name>
			<Damage>30.000000</Damage>
			<DamageType>Hand</DamageType>
			<MaxRange>2.000000</MaxRange>
			<ROF>3.000000</ROF>
		</ProtoAction>
		<ProtoAction>
			<Name>sweepDamage</Name>
			<Damage>5.000000</Damage>
			<DamageType>Hand</DamageType>
			<DamageFlags>GAIAEnemy</DamageFlags>
		</ProtoAction>
	</Unit>
	<Unit id ='909' name ='ypChuKoNu'>
		<DBID>1333</DBID>
		<DisplayNameID>60152</DisplayNameID>
		<EditorNameID>60153</EditorNameID>
		<PopulationCount>1</PopulationCount>
		<ObstructionRadiusX>0.4900</ObstructionRadiusX>
		<ObstructionRadiusZ>0.4900</ObstructionRadiusZ>
		<FormationCategory>Ranged</FormationCategory>
		<MaxVelocity>4.5000</MaxVelocity>
		<MaxRunVelocity>6.0000</MaxRunVelocity>
		<MovementType>land</MovementType>
		<TurnRate>18.0000</TurnRate>
		<AnimFile>units\Mods\ming\crossbow\crossbow.xml</AnimFile>
		<ImpactType>Flesh</ImpactType>
		<PhysicsInfo>dude</PhysicsInfo>
		<Icon>icon\mingcrossbow_icon_64</Icon>
		<PortraitIcon>icon\mingcrossbow_icon_portrait</PortraitIcon>
		<RolloverTextID>60151</RolloverTextID>
		<ShortRolloverTextID>60150</ShortRolloverTextID>
		<InitialHitpoints>90.0000</InitialHitpoints>
		<MaxHitpoints>90.0000</MaxHitpoints>
		<LOS>20.0000</LOS>
		<ProjectileProtoUnit>Arrow</ProjectileProtoUnit>
		<AutoAttackRange>16.0000</AutoAttackRange>
		<UnitAIType>RangedCombative</UnitAIType>
		<TrainPoints>24.0000</TrainPoints>
		<Bounty>9.0000</Bounty>
		<BuildBounty>9.0000</BuildBounty>
		<Cost resourcetype ='Food'>85.0000</Cost>
		<AllowedAge>1</AllowedAge>
		<Armor type ='Ranged' value ='0.2000'></Armor>
		<UnitType>LogicalTypeHealed</UnitType>
		<UnitType>LogicalTypeValidSharpshoot</UnitType>
		<UnitType>LogicalTypeNeededForVictory</UnitType>
		<UnitType>LogicalTypeHandUnitsAutoAttack</UnitType>
		<UnitType>LogicalTypeLandMilitary</UnitType>
		<UnitType>LogicalTypeScout</UnitType>
		<UnitType>LogicalTypeValidSPCUnitsDeadCondition</UnitType>
		<UnitType>LogicalTypeGarrisonInShips</UnitType>
		<UnitType>LogicalTypeRangedUnitsAutoAttack</UnitType>
		<UnitType>LogicalTypeVillagersAttack</UnitType>
		<UnitType>LogicalTypeHandUnitsAttack</UnitType>
		<UnitType>LogicalTypeRangedUnitsAttack</UnitType>
		<UnitType>LogicalTypeMinimapFilterMilitary</UnitType>
		<UnitType>ConvertsHerds</UnitType>
		<UnitType>AbstractRangedInfantry</UnitType>
		<UnitType>Ranged</UnitType>
		<UnitType>HasBountyValue</UnitType>
		<UnitType>AbstractCavalryInfantry</UnitType>
		<UnitType>CountsTowardMilitaryScore</UnitType>
		<UnitType>UnitClass</UnitType>
		<UnitType>Military</UnitType>
		<UnitType>Unit</UnitType>
		<UnitType>AbstractArcher</UnitType>
		<UnitType>AbstractInfantry</UnitType>
		<Flag>CollidesWithProjectiles</Flag>
		<Flag>ApplyHandicapTraining</Flag>
		<Flag>CorpseDecays</Flag>
		<Flag>ShowGarrisonButton</Flag>
		<Flag>DontRotateObstruction</Flag>
		<Flag>ObscuredByUnits</Flag>
		<Flag>Tracked</Flag>
		<Command page ='10' column ='1'>Stop</Command>
		<Command page ='10' column ='0'>Garrison</Command>
		<Command page ='10' column ='2'>Delete</Command>
		<Tactics>chukonu.tactics</Tactics>
		<ProtoAction>
			<Name>BuildingAttack</Name>
			<Damage>3.000000</Damage>
			<DamageType>Siege</DamageType>
			<ROF>3.000000</ROF>
		</ProtoAction>
		<ProtoAction>
			<Name>DefendHandAttack</Name>
			<Damage>6.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>DefendRangedAttack</Name>
			<Damage>5.000000</Damage>
			<DamageType>Ranged</DamageType>
			<MinRange>2.000000</MinRange>
			<MaxRange>16.000000</MaxRange>
			<ROF>3.000000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>MeleeHandAttack</Name>
			<Damage>6.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>StaggerHandAttack</Name>
			<Damage>6.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>StaggerRangedAttack</Name>
			<Damage>5.000000</Damage>
			<DamageType>Ranged</DamageType>
			<MinRange>2.000000</MinRange>
			<MaxRange>16.000000</MaxRange>
			<ROF>3.000000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>VolleyHandAttack</Name>
			<Damage>6.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>VolleyRangedAttack</Name>
			<Damage>5.000000</Damage>
			<DamageType>Ranged</DamageType>
			<MinRange>2.000000</MinRange>
			<MaxRange>16.000000</MaxRange>
			<ROF>3.000000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
		</ProtoAction>
	</Unit>
	<Unit id ='910' name ='ypArquebusier'>
		<DBID>1334</DBID>
		<DisplayNameID>60156</DisplayNameID>
		<EditorNameID>60157</EditorNameID>
		<PopulationCount>1</PopulationCount>
		<ObstructionRadiusX>0.4900</ObstructionRadiusX>
		<ObstructionRadiusZ>0.4900</ObstructionRadiusZ>
		<FormationCategory>Ranged</FormationCategory>
		<MaxVelocity>4.0000</MaxVelocity>
		<MaxRunVelocity>6.0000</MaxRunVelocity>
		<MovementType>land</MovementType>
		<TurnRate>18.0000</TurnRate>
		<AnimFile>units\Mods\ming\master\master.xml</AnimFile>
		<ImpactType>Flesh</ImpactType>
		<PhysicsInfo>dude</PhysicsInfo>
		<Icon>icon\mingmaster_icon_64</Icon>
		<PortraitIcon>icon\mingmaster_icon_portrait</PortraitIcon>
		<RolloverTextID>60155</RolloverTextID>
		<ShortRolloverTextID>60154</ShortRolloverTextID>
		<InitialHitpoints>105.0000</InitialHitpoints>
		<MaxHitpoints>105.0000</MaxHitpoints>
		<LOS>24.0000</LOS>
		<ProjectileProtoUnit>InvisibleProjectile</ProjectileProtoUnit>
		<AutoAttackRange>16.0000</AutoAttackRange>
		<UnitAIType>RangedCombative</UnitAIType>
		<TrainPoints>27.0000</TrainPoints>
		<Bounty>9.0000</Bounty>
		<BuildBounty>9.0000</BuildBounty>
		<Cost resourcetype ='Gold'>85.0000</Cost>
		<AllowedAge>2</AllowedAge>
		<Armor type ='Ranged' value ='0.3000'></Armor>
		<UnitType>LogicalTypeHealed</UnitType>
		<UnitType>LogicalTypeValidSharpshoot</UnitType>
		<UnitType>LogicalTypeNeededForVictory</UnitType>
		<UnitType>LogicalTypeHandUnitsAutoAttack</UnitType>
		<UnitType>LogicalTypeLandMilitary</UnitType>
		<UnitType>LogicalTypeScout</UnitType>
		<UnitType>LogicalTypeValidSPCUnitsDeadCondition</UnitType>
		<UnitType>LogicalTypeGarrisonInShips</UnitType>
		<UnitType>LogicalTypeRangedUnitsAutoAttack</UnitType>
		<UnitType>LogicalTypeVillagersAttack</UnitType>
		<UnitType>LogicalTypeHandUnitsAttack</UnitType>
		<UnitType>LogicalTypeRangedUnitsAttack</UnitType>
		<UnitType>LogicalTypeMinimapFilterMilitary</UnitType>
		<UnitType>AbstractInfantry</UnitType>
		<UnitType>Unit</UnitType>
		<UnitType>Military</UnitType>
		<UnitType>UnitClass</UnitType>
		<UnitType>CountsTowardMilitaryScore</UnitType>
		<UnitType>AbstractCavalryInfantry</UnitType>
		<UnitType>HasBountyValue</UnitType>
		<UnitType>Ranged</UnitType>
		<UnitType>AbstractGunpowderTrooper</UnitType>
		<UnitType>AbstractRangedInfantry</UnitType>
		<UnitType>ConvertsHerds</UnitType>
		<Flag>CollidesWithProjectiles</Flag>
		<Flag>ApplyHandicapTraining</Flag>
		<Flag>CorpseDecays</Flag>
		<Flag>ShowGarrisonButton</Flag>
		<Flag>DontRotateObstruction</Flag>
		<Flag>ObscuredByUnits</Flag>
		<Flag>Tracked</Flag>
		<Command page ='10' column ='1'>Stop</Command>
		<Command page ='10' column ='0'>Garrison</Command>
		<Command page ='10' column ='2'>Delete</Command>
		<Tactics>musketBayonet.tactics</Tactics>
		<ProtoAction>
			<Name>BuildingAttack</Name>
			<Damage>9.000000</Damage>
			<DamageType>Siege</DamageType>
			<ROF>3.000000</ROF>
		</ProtoAction>
		<ProtoAction>
			<Name>DefendHandAttack</Name>
			<Damage>5.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>DefendRangedAttack</Name>
			<Damage>14.000000</Damage>
			<DamageType>Ranged</DamageType>
			<MaxRange>20.000000</MaxRange>
			<ROF>3.000000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>MeleeHandAttack</Name>
			<Damage>5.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>StaggerHandAttack</Name>
			<Damage>5.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>StaggerRangedAttack</Name>
			<Damage>14.000000</Damage>
			<DamageType>Ranged</DamageType>
			<MaxRange>20.000000</MaxRange>
			<ROF>3.000000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>VolleyHandAttack</Name>
			<Damage>5.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>VolleyRangedAttack</Name>
			<Damage>14.000000</Damage>
			<DamageType>Ranged</DamageType>
			<MaxRange>20.000000</MaxRange>
			<ROF>3.000000</ROF>
			<DamageBonus type ='AbstractLightCavalry'>2.000000</DamageBonus>
			<DamageBonus type ='AbstractHeavyInfantry'>2.000000</DamageBonus>
			<DamageBonus type ='xpEagleKnight'>2.000000</DamageBonus>
			<DamageBonus type ='xpCoyoteMan'>0.750000</DamageBonus>
			<DamageBonus type ='AbstractCavalry'>0.750000</DamageBonus>
		</ProtoAction>
	</Unit>
	<Unit id ='911' name ='ypQiangPikeman'>
		<DBID>1335</DBID>
		<DisplayNameID>60160</DisplayNameID>
		<EditorNameID>60161</EditorNameID>
		<PopulationCount>1</PopulationCount>
		<ObstructionRadiusX>0.4900</ObstructionRadiusX>
		<ObstructionRadiusZ>0.4900</ObstructionRadiusZ>
		<FormationCategory>Body</FormationCategory>
		<MaxVelocity>5.0000</MaxVelocity>
		<MaxRunVelocity>7.0000</MaxRunVelocity>
		<MovementType>land</MovementType>
		<TurnRate>18.0000</TurnRate>
		<AnimFile>units\Mods\ming\pikeman\pikeman.xml</AnimFile>
		<ImpactType>Flesh</ImpactType>
		<PhysicsInfo>dude</PhysicsInfo>
		<Icon>icon\mingpikeman_icon_64</Icon>
		<PortraitIcon>icon\mingpikeman_icon_portrait</PortraitIcon>
		<SelectionPriority>20</SelectionPriority>
		<RolloverTextID>60159</RolloverTextID>
		<ShortRolloverTextID>60158</ShortRolloverTextID>
		<InitialHitpoints>110.0000</InitialHitpoints>
		<MaxHitpoints>110.0000</MaxHitpoints>
		<LOS>12.0000</LOS>
		<UnitAIType>HandCombative</UnitAIType>
		<TrainPoints>24.0000</TrainPoints>
		<Bounty>7.0000</Bounty>
		<BuildBounty>7.0000</BuildBounty>
		<Cost resourcetype ='Wood'>60.0000</Cost>
		<AllowedAge>1</AllowedAge>
		<Armor type ='Hand' value ='0.1000'></Armor>
		<UnitType>LogicalTypeHealed</UnitType>
		<UnitType>LogicalTypeValidSharpshoot</UnitType>
		<UnitType>LogicalTypeNeededForVictory</UnitType>
		<UnitType>LogicalTypeHandUnitsAutoAttack</UnitType>
		<UnitType>LogicalTypeLandMilitary</UnitType>
		<UnitType>LogicalTypeScout</UnitType>
		<UnitType>LogicalTypeValidSPCUnitsDeadCondition</UnitType>
		<UnitType>LogicalTypeGarrisonInShips</UnitType>
		<UnitType>LogicalTypeRangedUnitsAutoAttack</UnitType>
		<UnitType>LogicalTypeVillagersAttack</UnitType>
		<UnitType>LogicalTypeHandUnitsAttack</UnitType>
		<UnitType>LogicalTypeRangedUnitsAttack</UnitType>
		<UnitType>LogicalTypeMinimapFilterMilitary</UnitType>
		<UnitType>ConvertsHerds</UnitType>
		<UnitType>AbstractHandInfantry</UnitType>
		<UnitType>AbstractPikeman</UnitType>
		<UnitType>HasBountyValue</UnitType>
		<UnitType>AbstractCavalryInfantry</UnitType>
		<UnitType>CountsTowardMilitaryScore</UnitType>
		<UnitType>UnitClass</UnitType>
		<UnitType>Military</UnitType>
		<UnitType>Unit</UnitType>
		<UnitType>AbstractInfantry</UnitType>
		<UnitType>AbstractHeavyInfantry</UnitType>
		<Flag>CollidesWithProjectiles</Flag>
		<Flag>ApplyHandicapTraining</Flag>
		<Flag>CorpseDecays</Flag>
		<Flag>ShowGarrisonButton</Flag>
		<Flag>DontRotateObstruction</Flag>
		<Flag>ObscuredByUnits</Flag>
		<Flag>Tracked</Flag>
		<Command page ='10' column ='1'>Stop</Command>
		<Command page ='10' column ='0'>Garrison</Command>
		<Command page ='10' column ='2'>Delete</Command>
		<Tactics>pikeman.tactics</Tactics>
		<ProtoAction>
			<Name>BuildingAttack</Name>
			<Damage>30.000000</Damage>
			<DamageType>Siege</DamageType>
			<ROF>3.000000</ROF>
		</ProtoAction>
		<ProtoAction>
			<Name>CoverBuildingAttack</Name>
			<Damage>15.000000</Damage>
			<DamageType>Siege</DamageType>
			<ROF>3.000000</ROF>
		</ProtoAction>
		<ProtoAction>
			<Name>CoverHandAttack</Name>
			<Damage>3.500000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractCavalry'>5.000000</DamageBonus>
			<DamageBonus type ='AbstractLightInfantry'>3.000000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>DefendHandAttack</Name>
			<Damage>7.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractCavalry'>5.000000</DamageBonus>
			<DamageBonus type ='AbstractLightInfantry'>3.000000</DamageBonus>
		</ProtoAction>
		<ProtoAction>
			<Name>MeleeHandAttack</Name>
			<Damage>7.000000</Damage>
			<DamageType>Hand</DamageType>
			<ROF>1.500000</ROF>
			<DamageBonus type ='AbstractCavalry'>5.000000</DamageBonus>
			<DamageBonus type ='AbstractLightInfantry'>3.000000</DamageBonus>
		</ProtoAction>
	</Unit>







其他的使用方法看1-6初始科技。
